Outlook 2013-2007 Manual Setup for POP

The following are instructions for setting up Microsoft Outlook 2013 to send and receive email for an email mailbox you’ve created.

You can use our Outlook 2013 IMAP setup instructions to manually configure your mailbox as IMAP.

1. Open the Microsoft Outlook program

Click on the Start menu to open Outlook 2013. If you do not have an Outlook account, you will be prompted to create a new account. If you already have an Outlook account, go to step 2.

If an Outlook prompt to open an account does not appear, Click on the File tab:

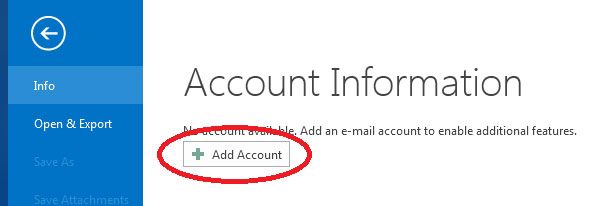

Select Info and click the Add Account button:

Outlook 2016 POP3 set up - step two

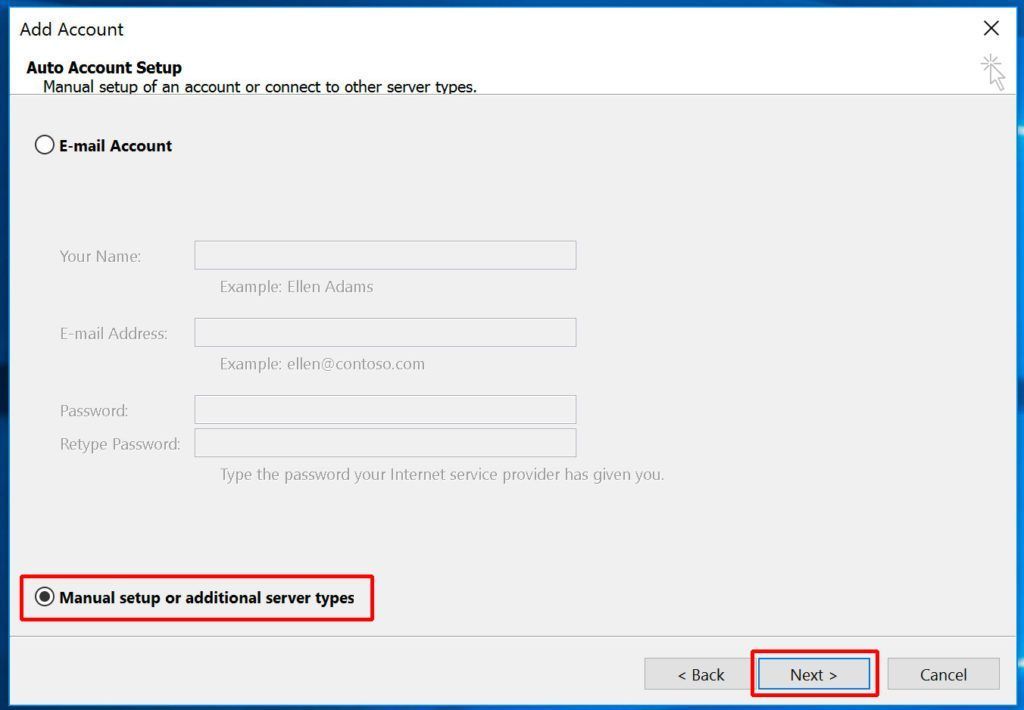

2. The “Auto Account Setup” window appears

When this window appears, leave the spaces empty, choose the Manually configure server settings or additional server types option, then click Next.

Outlook 2016 POP3 set up - step two

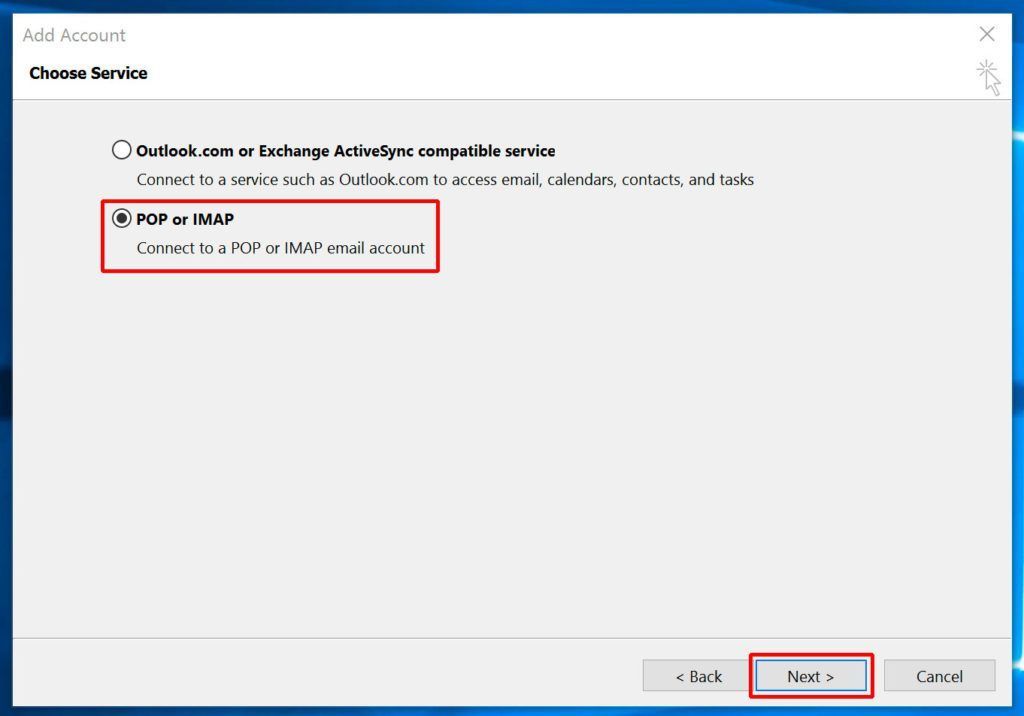

3. The “Choose Service” window appears.

Choose POP, then click Next

Outlook 2013 POP set up - step 3

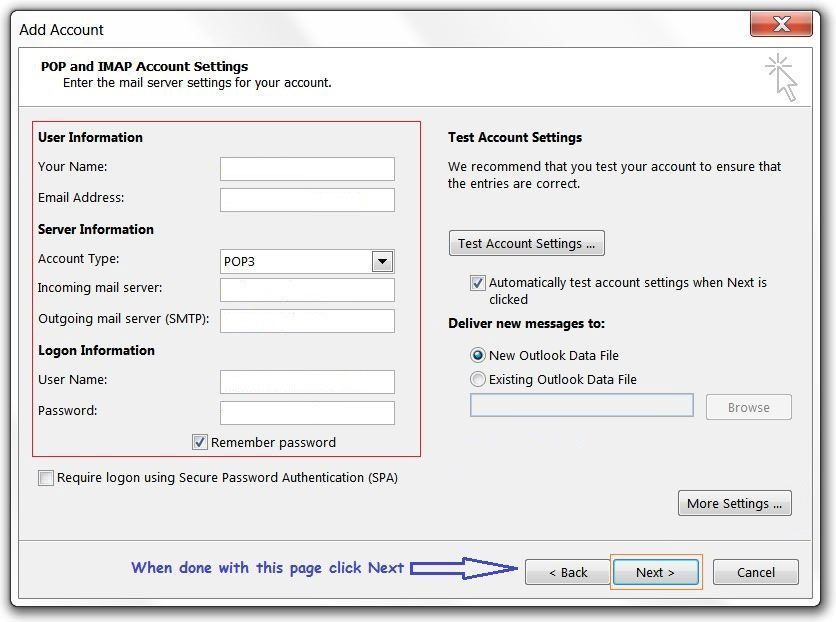

4. The “POP Account Settings” window appears.

This is the window where you’ll enter most of your account settings. You want the window to look like this:

Outlook 2013 POP set up - step 3
  • “Your Name” is the name that other people will see when you send them email. It should usually be your real name, such as Bill Gates or Joan of Arc.
  • Enter your “Email Address”. The address must be the email address of the mailbox you created in your account management control panel.
  • For “Account Type”, choose POP3.
  • Enter pop3.phonewave.net for the Incoming mail server and smtp.phonewave for the Outgoing mail server (SMTP).
  • Enter your username, the first part of your email address. For example, ff you email is “username@email.com”, enter “username” without @email.com. (The user name must be all lowercase).
  • Type your email password into the “Password” box.
  • Make sure that “Require logon using Secure Password Authentication (SPA)” is not checked.
  • Do not click “Test Account Settings” or “Next” yet; they will not work until you complete the next steps.

5. View “More Settings”

If setting up a mobile device, click the More Settings button. A new “Internet E-mail Settings” window appears.

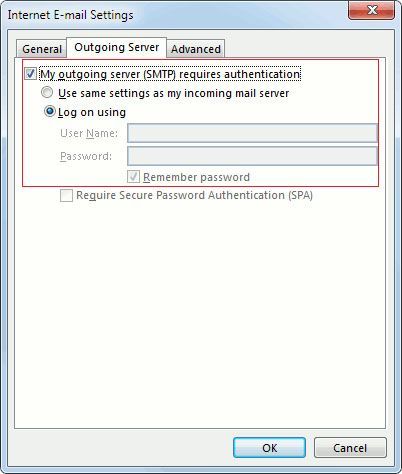

6. Choose the “Outgoing Server” tab.

In the “Outgoing Server” tab, check My outgoing server (SMTP) requires authentication and make sure Use same settings as my incoming mail server is selected:

Outlook 2013 POP set up - step 3

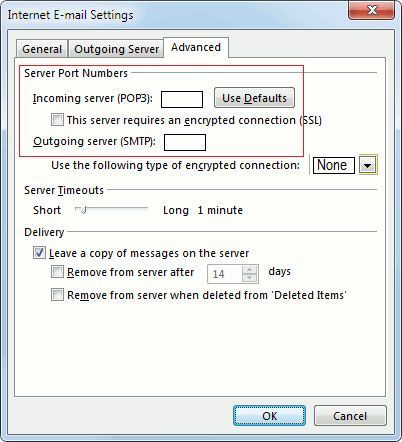

7. Choose the “Advanced” tab.

Click the “Advanced” tab, then:

  • Do Not check mark This server requires an encrypted connection (SSL).
  • Port number for POP3 should be 110
  • Port number for SMTP should be 25.
  • Set Use the following type of encrypted connection to SSL.
  • Those parts of the window should look like this:

Those parts of the window should look like this:

Outlook 2013 POP set up - step 3

8. Close the “internet E-mail settings” window

Click OK to close the “Internet E-mail Settings” window. The “Add New Account” window will still be visible.

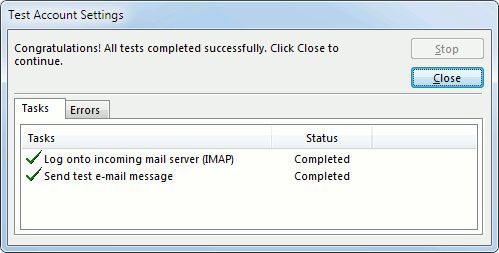

9. Test the settings.

Click Next. Outlook should tell you that “all tests completed successfully”:

Outlook 2013 POP set up - step 3

If Outlook tells you a test failed, double-check to be sure you’ve entered the settings correctly.

10. Finish the wizard

If the “Test Account Settings” window is still open, click Close to continue. Click Finish to finish the wizard.

Outlook setup is complete

You’re finished! Try sending yourself a test email message to make sure it works.
